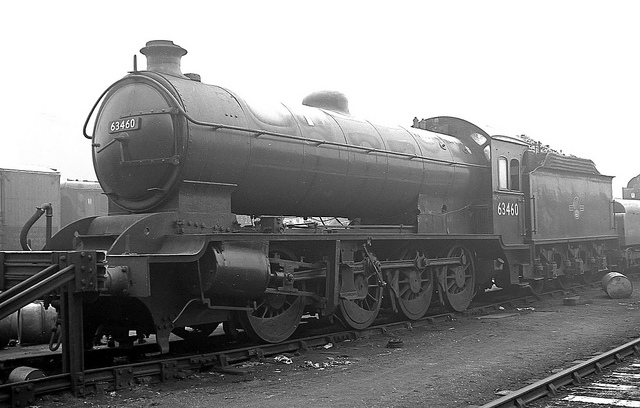

NER/LNER Raven "Q7" Class 0-8-0
Class Types
| NER Class |
T3 |
| LNER Class |
Q7 |
General
| Designer |
Sir Vincent Raven |
| Introduced |
1919 |
| Pre-Grouping Company |
North Eastern Railway |
| Grouping Company |
London and North Eastern Railway |
| Description (1957) |
Class Q7. Raven 3-cylinder 0-8-0's with 4'7" wheels. Built between 1919 and 1924 and all still in service in 1957. |
| Wheel Arrangement |
0-8-0 |
| Number Built as Q7 |
15 |
| Number Scrapped |
14 |
| Number Preserved |
1 |
| First in Service |
10/1919 |
| Last in Service |
17/12/1962 |
| Manufacturers |
|
| Orders |
|
|
|
|
Power
| Variant Introduced |
1919 |
| Tractive Effort |
36,909lbs |
| Inside Cylinders |
18.5" x 26" (1 off) |
| Inside Valves |
Slide |
| Inside Motion |
Stephenson |
| Outside Cylinders |
18.5" x 26" (2 off) |
| Outside Valves |
Slide |
| Outside Motion |
Stephenson |
Wheels
| Drivers |
4' 71⁄4" |
| Locomotive Wheelbase |
18' 6" |
| Tender Wheelbase |
12' 8" |
| Total Wheelbase |
44' 77⁄8" |
| Descriptive Wheelbase |
7' 0" + 5' 9" + 5' 9" + 13' 1⅞" + 6' 4" + 6' 4" = 44' 3⅞" |
Dimensions
| Length (over buffers) |
60' 10" |
| Weight (in running order) |
115t 14cwt |
| Weight (loco only) |
71t 12cwt |
| Maximum Axle Load |
19t 0cwt |
| Water Capacity |
4,125gal |
| Coal Capacity |
5t 10cwt |
Boiler & Firebox
| Boiler Pitch |
13' 3" |
|
