MGNR/LNER Marriott "C17" Class 4-4-2T


Class Types
MGNR Class A
LNER Class C17

General
Introduced 1904
Pre-Grouping Company Midland & Great Northern Railway
Grouping Company London and North Eastern Railway
Wheel Arrangement 4-4-2T
Number Built as C17 3

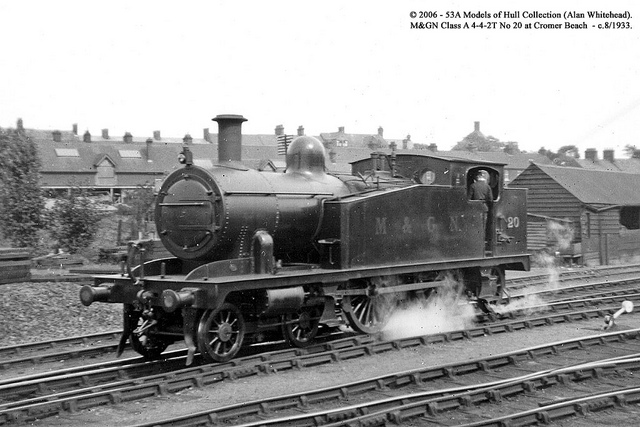

Illustration
Copyright: 53A Models
Power
C17 C17
Variant Introduced 1904 1909
Tractive Effort 13,491lbs
As C17
Outside Cylinders 17.25" x 24" (2 off)
As C17
Outside Valves Slide
As C17
Outside Motion Stephenson
As C17

Wheels
C17 C17
Pony 3'
As C17
Drivers 6'
As C17
Truck 3' 7"
As C17
Total Wheelbase 29' 6"
As C17
Descriptive Wheelbase 6' 6" + 7' 0" + 8' 6" + 7' 6" = 29' 6"
As C17

Dimensions
C17 C17
Length (over buffers) 38' 8"
As C17
Weight (in running order) 68t 19cwt 65t 10cwt
Adhesive Weight   35t 10cwt
Maximum Axle Load   17t 18cwt
Water Capacity 1,600gal
As C17
Coal Capacity 2t 0cwt
As C17

Boiler & Firebox
C17 C17
Boiler Pitch 7' 6"
As C17
