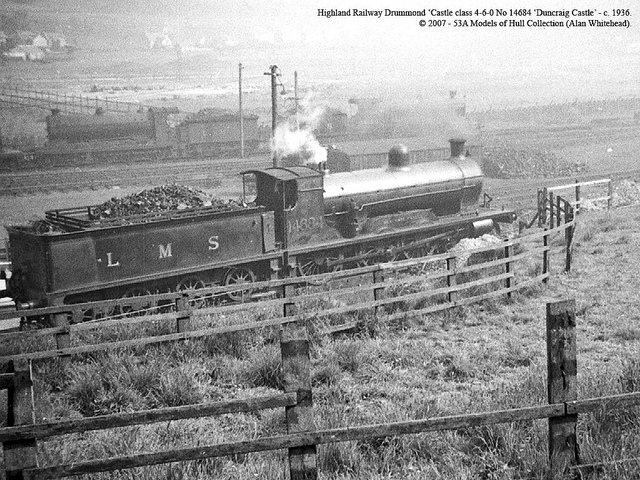

HR/LMS Drummond "A" Class 4-6-0
General
| Designer |
Peter Drummond |
| Introduced |
1900 |
| Pre-Grouping Company |
Highland Railway |
| Grouping Company |
London, Midland & Scottish Railway |
| Wheel Arrangement |
4-6-0 |
| Number Built as A |
19 |
| Number Scrapped |
19 |
| Number Preserved |
0 |
| First in Service |
06/1900 |
| Last in Service |
04/1947 |
| Manufacturers |
|
|
|
|
Power
|
1st Series |
2nd Series |
3rd Series |
| Variant Introduced |
1900 |
1913 |
1916 |
| Tractive Effort |
21,922lbs |
As 1st Series |
21,469lbs |
| Outside Cylinders |
19.5" x 26" (2 off) |
As 1st Series |
As 1st Series |
| Outside Valves |
Richardson |
As 1st Series |
As 1st Series |
| Outside Motion |
Allan Link |
As 1st Series |
As 1st Series |
Wheels
|
1st Series |
2nd Series |
3rd Series |
| Pony |
3' 3" |
As 1st Series |
As 1st Series |
| Drivers |
5' 9" |
As 1st Series |
6' |
| Locomotive Wheelbase |
26' 3" |
As 1st Series |
As 1st Series |
| Tender Wheelbase |
16' 6" |
As 1st Series |
As 1st Series |
| Total Wheelbase |
52' 51⁄2" |
As 1st Series |
50' 10" |
| Descriptive Wheelbase |
6' 6" + 5' 6" + 6' 0" + 8' 3" + 9' 6½" + 5' 6" + 5' 6" + 5' 6" |
As 1st Series |
As 1st Series |
Dimensions
|
1st Series |
2nd Series |
3rd Series |
| Length (over buffers) |
|
61' 2" |
60' 91⁄2" |
| Weight (in running order) |
103t 6cwt |
104t 18cwt |
107t 0cwt |
| Weight (loco only) |
58t 17cwt |
59t 18cwt |
60t 13cwt |
| Adhesive Weight |
43t 17cwt |
44t 18cwt |
45t 17cwt |
| Water Capacity |
3,350gal |
As 1st Series |
4,000gal |
| Coal Capacity |
5t 0cwt |
As 1st Series |
6t 10cwt |
|
