CR/LMS Pickersgill "72" Class 4-4-0

**Class Types**
CR Class	72

General

Designer

William Pickersgill

Introduced

1920

Pre-Grouping Company

Caledonian Railway

Grouping Company

London, Midland & Scottish Railway

Wheel Arrangement

4-4-0

Number Built as 72

32

Manufacturers

Manufacturer	Total
Armstrong Whitworth	10
North British Locomotive Company, Glasgow	12
St. Rollox Works	10

Orders

Builder	Sponsor	Order #	Date	Size
St. Rollox Works		Y124	1920	10
Armstrong Whitworth		n/a	1921	10
North British Locomotive Company, Glasgow (Unknown)		n/a	1922	12

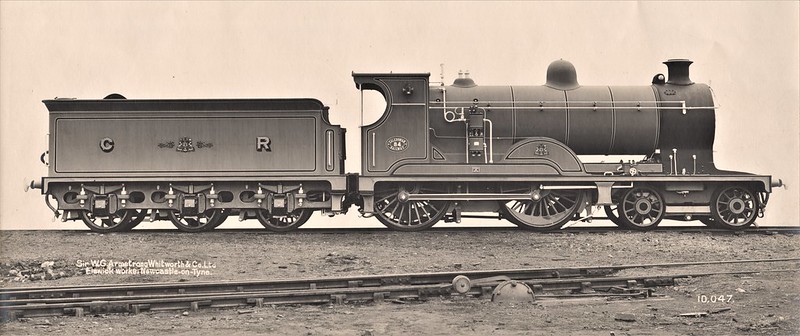

**Illustration**

Copyright: Historical Railway Images

**Power**
Inside Cylinders	20.5" x 26" (2 off)

**Wheels**
Pony	6' 6"
Drivers	3' 6"
Locomotive Wheelbase	24' 4"
Descriptive Wheelbase	7' 0" + 7' 7" + 9' 9" = 24' 4" (engine only)
