MR/LMS Deeley "1528" Class 0-4-0T

General

Designer

Richard Deeley

Introduced

1907

Pre-Grouping Company

Midland Railway

Grouping Company

London, Midland & Scottish Railway

Wheel Arrangement

0-4-0T

Number Built as 1528

Conversions from other classes

First in Service

08/1907

Last in Service

12/1966

Manufacturers

Manufacturer	Total
Derby Works	10

Orders

Builder	Sponsor	Order #	Date	Size
Derby Works		3031	1907	5

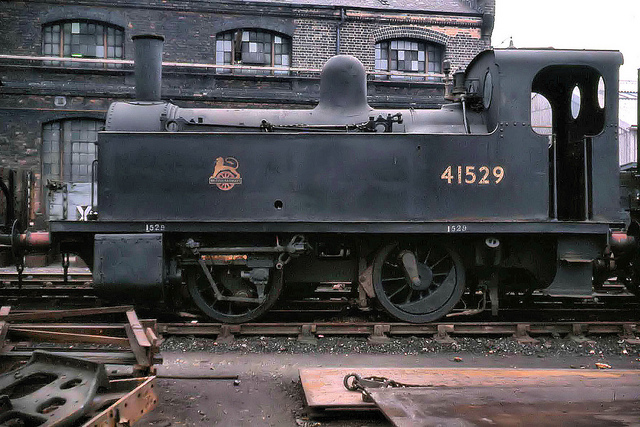

**Illustration**

Copyright: Unknown - please contact me if you know the copyright holder

**Power**
	1533	1533 (Rblds)
Variant Introduced	1907	As 1533
Miscellaneous Differences		Renewals of a motley selection of earlier Johnson classes.
Outside Cylinders	15" x 22" (2 off)	As 1533

**Wheels**
	1533	1533 (Rblds)
Drivers	3' 10"	As 1533
Locomotive Wheelbase	7' 6"	As 1533

**Dimensions**
	1533	1533 (Rblds)
Weight (loco only)	32t 16cwt	As 1533

**Boiler & Firebox**
	1533	1533 (Rblds)
Boiler Diagram	J2	J2
Boiler Max Diameter	3' 8"	3' 8"
Boiler Barrel Length	10' 4"	10' 4"
Boiler Pressure	160lbs	160lbs
Firebox Type	Round Top	Round Top
Firebox Length	4'	4'
Total Evaporative Area	764ft²	764ft²
Total Heating Area	764ft²	764ft²
