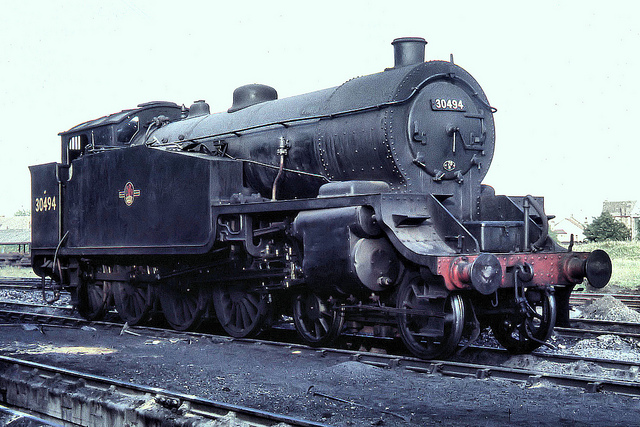

LSWR/SR Urie "G16" Class 4-8-0T
Class Types
| LSWR Class |
G16 |
General
| Designer |
Robert Urie |
| Introduced |
1921 |
| Pre-Grouping Company |
London and South Western Railway |
| Grouping Company |
Southern Railway |
| Wheel Arrangement |
4-8-0T |
| Number Built as G16 |
4 |
| First in Service |
07/1921 |
| Last in Service |
15/12/1962 |
| Manufacturers |
|
| Orders |
|
|
|
|
Power
| Variant Introduced |
1921 |
| Tractive Effort |
33,900lbs |
| Outside Cylinders |
22" x 28" (2 off) |
| Outside Motion |
Walschaerts |
Wheels
| Pony |
3' 7" |
| Drivers |
5' 1" |
| Total Wheelbase |
32' |
| Descriptive Wheelbase |
7' 6" + 6' 6" + 6' 0" + 6' 0" + 6' 0" = 32' 0" |
Dimensions
| Length (over buffers) |
42' 101⁄4" |
| Weight (in running order) |
95t 2cwt |
| Maximum Axle Load |
22t 4cwt |
| Coal Capacity |
3t 10cwt |
Boiler & Firebox
| Boiler Max Diameter |
5' |
| Boiler Barrel Length |
12' |
| Boiler Pressure |
180lbs |
| Firebox Type |
Round Top |
| Firebox Length |
8' 4" |
| Firebox Grate Area |
27ft2 |
| Firebox Heating Surface |
139ft2 |
| Tube Area |
910ft2 |
| Flue Area |
357ft2 |
| Total Evaporative Area |
1267ft2 |
| Superheater Element Area |
231ft2 |
| Total Heating Area |
1498ft2 |
|
