Beyer-Peacock 35 B-B


Class Types
1955 Class D17/2
Pre-Tops Class 17/7
TOPS Class 35

General
Alias Hymek
Year Introduced 1961
Wheel Arrangement B-B
Manufacturers
ManufacturerTotal
Beyer Peacock Ltd. 101
Number Range (as built) D7000-D7100
Number Built 101
Reports
Title
Western Region Diesel Hydraulics lifespan
Orders
BuilderOrder #DateSize
Beyer Peacock Ltd. n/a 1960 45
Beyer Peacock Ltd. n/a 1961 50
Beyer Peacock Ltd. n/a 1963 6

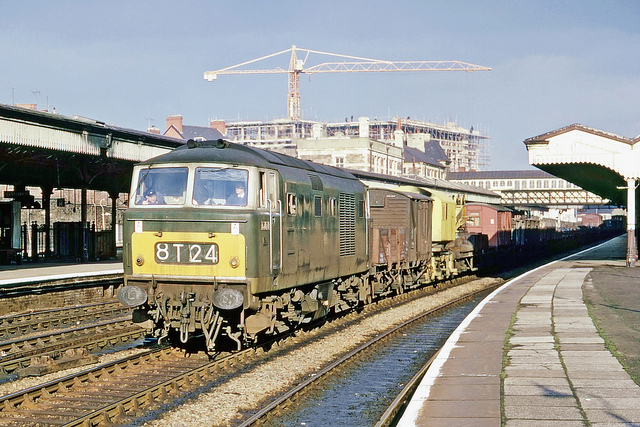

Illustration
Copyright: BarkingBill (02/02/1968)
Miscellaneous
35 35
Year Introduced 1961
As 35
Maximum Speed 90mph
As 35
Number Built 45 56
Number Range (as built) D7000-D7044 D7045-D7100
Sanding Equipment Pneumatic
As 35
Route Availability 6
As 35
Multiple Working Yellow Triangle
As 35
Brake Type (loco - as built) Vacuum
As 35

Dimensions
35 35
Weight 74t 0cwt
As 35
Wheel Diameter 3' 9"
As 35
Length 51' 81⁄2"
As 35
Height 10' 109⁄16"
As 35
Width 8' 81⁄2"
As 35
Wheelbase 36'
As 35
Bogie Wheelbase 10' 6"
As 35
Bogie Pivot Centres 25' 6"
As 35
Minimum Curve 4
As 35

Power
35 35
Power Unit Maybach MD870 Maybach MD870
Tractive Effort 46,600lbs
As 35
Horse Power 1740hp 1740hp

Transmission
35 35
Transmission Type Hydraulic
As 35
Transmission Mekydro K184U
As 35

Heating
35 35
Heating Type Steam
As 35
Boiler Stone OK4616 Spanner Mk 3
Boiler Water Capacity 800gal
As 35

Fuel, Lubricants, Water
35 35
Fuel Capacity 800gal
As 35
