LSWR/SR Adams "O2" Class 0-4-4T


Class Types
LSWR Class O2

General
Designer William Adams
Introduced 1889
Pre-Grouping Company London and South Western Railway
Grouping Company Southern Railway
Wheel Arrangement 0-4-4T
Number Built as O2 60
Number Scrapped 59
Number Preserved 1
First in Service 12/1889
Last in Service 03/1967
Manufacturers
ManufacturerTotal
Nine Elms Works 60
Orders
BuilderSponsorOrder #DateSize
Nine Elms Works  O2 30/01/1889 10
Nine Elms Works  B3 27/02/1889 10
Nine Elms Works  K3 29/01/1890 10
Nine Elms Works  D4 06/08/1890 20
Nine Elms Works  R6 13/06/1893 10

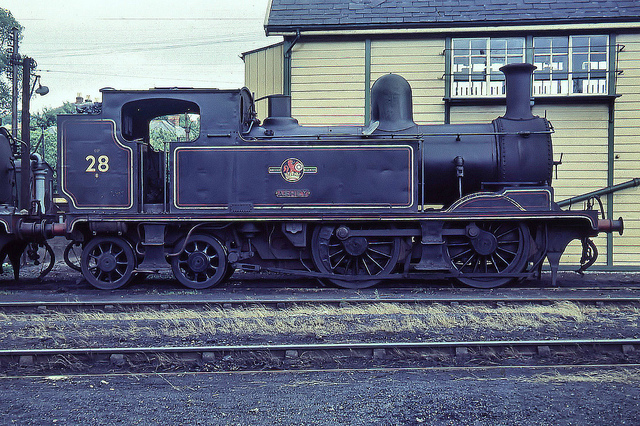

Illustration
Copyright: Unknown - please contact me if you know the copyright holder
Power
Variant Introduced 1889
Tractive Effort 17,235lbs
Inside Cylinders 17" x 24" (2 off)

Wheels
Drivers 4' 10"
Truck 3'
Total Wheelbase 20' 4"
Descriptive Wheelbase 6' 10" + 8' 6" + 5' 0" = 20' 4"

Dimensions
Length (over buffers) 30' 81⁄2"
Weight (in running order) 46t 18cwt
Maximum Axle Load 16t 8cwt
Water Capacity 800gal
Coal Capacity 1t 10cwt

Boiler & Firebox
Boiler Max Diameter 4' 2"
Boiler Barrel Length 9' 5"
Boiler Pressure 160lbs
Firebox Type Round Top
Firebox Length 5'
Firebox Grate Area 13.83ft2
Firebox Heating Surface 89ft2
Tube Number 201
Tube Diameter 13⁄4"
Tube Area 898ft2
Total Evaporative Area 987ft2
Total Heating Area 987ft2
