01 0-4-0

**Class Types**
1948 Class	DY2
1955 Class	D1/2
Pre-Tops Class	1/12
TOPS Class	01

General

Year Introduced

1956

Wheel Arrangement

0-4-0

Manufacturers

Manufacturer	Total
Andrew Barclay, Sons & Co. Ltd., Kilmarnock	5

Number Range (as built)

D2953-D2956, Dept.81

Number Built

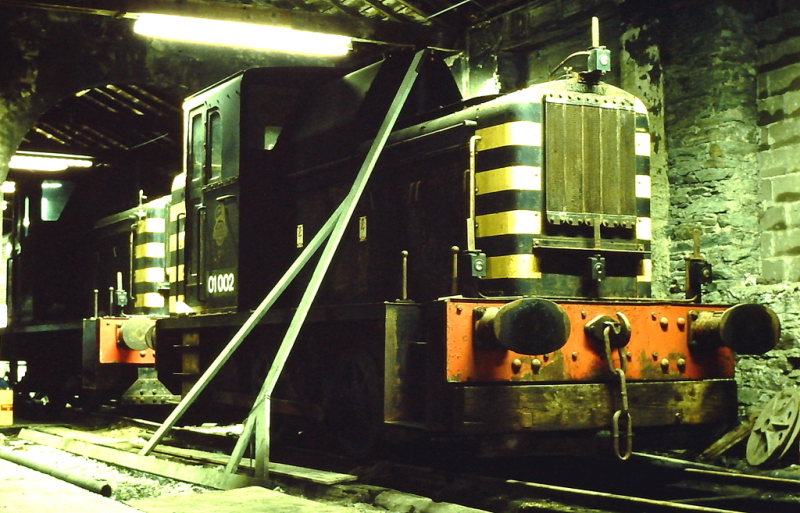

**Illustration**

Copyright: Curly42 ()

**Miscellaneous**
Year Introduced	1956
Maximum Speed	14mph
Route Availability	1
Brake Type (loco - as built)	Air
Brake Type (train - as built)	None

**Dimensions**
Weight	25t 1cwt
Wheel Diameter	3' 2"
Length	23' 8"
Height	11' 10³⁄₈"
Width	8' 5¹⁄₂"
Wheelbase	6'
Minimum Curve	1.06

**Power**
Power Unit	Gardner 6L3
Tractive Effort	12,750lbs
Horse Power	153hp

**Transmission**
Transmission Type	Mechanical
Fluid Coupling	Vulcan-Sinclair Type 23
Gearbox	Wilson SE4 4 speed epicyclic
Final Drive	Wiseman Type 15 RLGB

**Fuel, Lubricants, Water**
Fuel Capacity	325gal
