47 Co-Co


Class Types
Pre-Tops Class 27/2
TOPS Class 47

General
Year Introduced 1962
Wheel Arrangement Co-Co
Manufacturers
ManufacturerTotal
Brush Traction, Loughborough 310
Crewe Works 202
Number Range (as built) D1100-D1111, D1500-D1999
Number Built 512

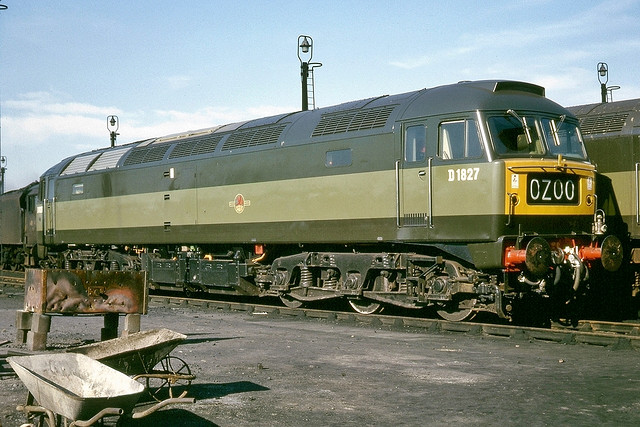

Illustration
Copyright: BarkingBill (28/03/1965)
Miscellaneous
47/0 47/3 47/4 47/6 47/7 (PP) 47/7b 47/7c 47/8 47/9 47/9 (Dep)
Year Introduced 1962
As 47/0
As 47/0
1975 1979
As 47/0
As 47/0
As 47/0
As 47/0
As 47/0
Notes Standard steam heat class 47. Some subsequently had boilers isolated or removed. Built Vacuum Braked, subsequently Dual braked by the addition of Air brakes.
As 47/0
As 47/0
As 47/0
As 47/0
As 47/0
Royal Class 47/7's, 47798 and 47799
As 47/0
As 47/0
As 47/0

Dimensions
47/0 47/3 47/4 47/6 47/7 (PP) 47/7b 47/7c 47/8 47/9 47/9 (Dep)

Power
47/0 47/3 47/4 47/6 47/7 (PP) 47/7b 47/7c 47/8 47/9 47/9 (Dep)
Power Unit Sulzer 12LDA28C
As 47/0
As 47/0
Ruston 16RK3CT
As 47/0
As 47/0
As 47/0
As 47/0
Ruston 12RK3ACT
As 47/0
Horse Power 2750hp
As 47/0
As 47/0
3250hp
As 47/0
As 47/0
As 47/0
As 47/0
3300hp
As 47/0

Transmission
47/0 47/3 47/4 47/6 47/7 (PP) 47/7b 47/7c 47/8 47/9 47/9 (Dep)
Transmission Type Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric

Heating
47/0 47/3 47/4 47/6 47/7 (PP) 47/7b 47/7c 47/8

Fuel, Lubricants, Water
47/0 47/3 47/4 47/6
